CB200 - Combo Plans - Chicken Coop Plans Construction + Garden Sheds - Storage Sheds Plans Construction

It can comfortably hold 20 chickens

...

Units: Inches - fractions

Overall size: 5 x 11 for Chicken Coop

Nest Boxes for 3 Hens

5 x 8 for Garden Shed

17 6 1/2" x 10 3 1/4" x 11 2 1/4" (height) for area of ??the building

Construction area: 180.533 Feet ²

Total volume of wood: 340374 inches3 (= 197 feet3)

...

Units: Millimeters - decimal

Overall size: 1524 x 3353 for Chicken Coop

Nest Boxes for 3 Hens

1524 x 2438 for Garden Shed

5347 x 3132 x 3411 (height) for area of ??the building

Construction area: 16.76 Meters ²

Total volume of wood: 5.404 m3

...

CB200 - Combo Plans - Chicken Coop Plans Construction

Garden Sheds - Storage Sheds Plans Construction

...

It can comfortably hold 20 chickens

...

Units: Inches - fractions

...

Overall size: 5 x 11 for Chicken Coop
Nest Boxes for 3 Hens
5 x 8 for Garden Shed
17 6 1/2" x 10 3 1/4" x 11 2 1/4" (height) for area of ??the building
Construction area: 180.533 Feet ²
Total volume of wood: 340374 inches3 (= 197 feet3)
...
Dimensional lumber sizes:
a: 4"x4" (Nominal) = 3 1/2" x 3 1/2" (Actual)
b: 2"x4" (Nominal) = 1 1/2" x 3 1/2" (Actual)
c: 2"x2" (Nominal) = 1 1/2" x 1 1/2" (Actual)
d: 1"x2" (Nominal) = 3/4" x 1 1/2" (Actual)
f: 1"x4" (Nominal) = 3/4" x 3 1/2" (Actual)
g: 1"x6" (Nominal) = 3/4" x 5 1/2" (Actual)
k: 1"x1" (Nominal) = 3/4" x 3/4" (Actual)
h: 1" thickness (Nominal) = 3/4" thickness (Actual)

...

Units: Millimeters - decimal

...

Overall size: 1524 x 3353 for Chicken Coop
Nest Boxes for 3 Hens
1524 x 2438 for Garden Shed
5347 x 3132 x 3411 (height) for area of ??the building
Construction area: 16.76 Meters ²
Total volume of wood: 5.404 m3
...
Dimensional lumber sizes:
a: 100x100 mm (Nominal) = 89x89 mm (Actual)
b: 50x100 mm (Nominal) = 38x89 mm (Actual)
c: 50x50 mm (Nominal) = 38x38 mm (Actual)
d: 25x50 mm (Nominal) = 19x38 mm (Actual)
f: 25x100 mm (Nominal) = 19x89 mm (Actual)
g: 25x150 mm (Nominal) = 19x140 mm (Actual)
k: 25x25 mm (Nominal) = 19x19 mm (Actual)
h: 25 mm thickness (Nominal) = 19 mm thickness (Actual)

...
The functional component - the build step guide - Table of Contents:
0.0 - 0.8 - Concept design
1.0 - Building the Axis and Column
2.0 - Building the Main Frame Structure
3.0 - Building the Floor System
3.4 - Building the Wall inside and Insulated panel for wall
4.0 - Building the Nesting boxes
5.0 - Building Wall inside
6.0 - Building Perches for chickens
7.0 - Building the Frame of the Door, Windows - Vents
8.0 - Building Roof beam 1
9.0 - Building Insulated panel for Wall
10.0 - Building Wall system outsite
11.0 - Building the Doors and Windows
- Main door - Connect door - Window and mesh
- Automatic and Standard Chicken door
12.0 - Building RAMP
13.0 - Building completed roof
14.0 - Building Chicken Run
15.0 - Building Chicken Run
- Main door for run - Wire mesh

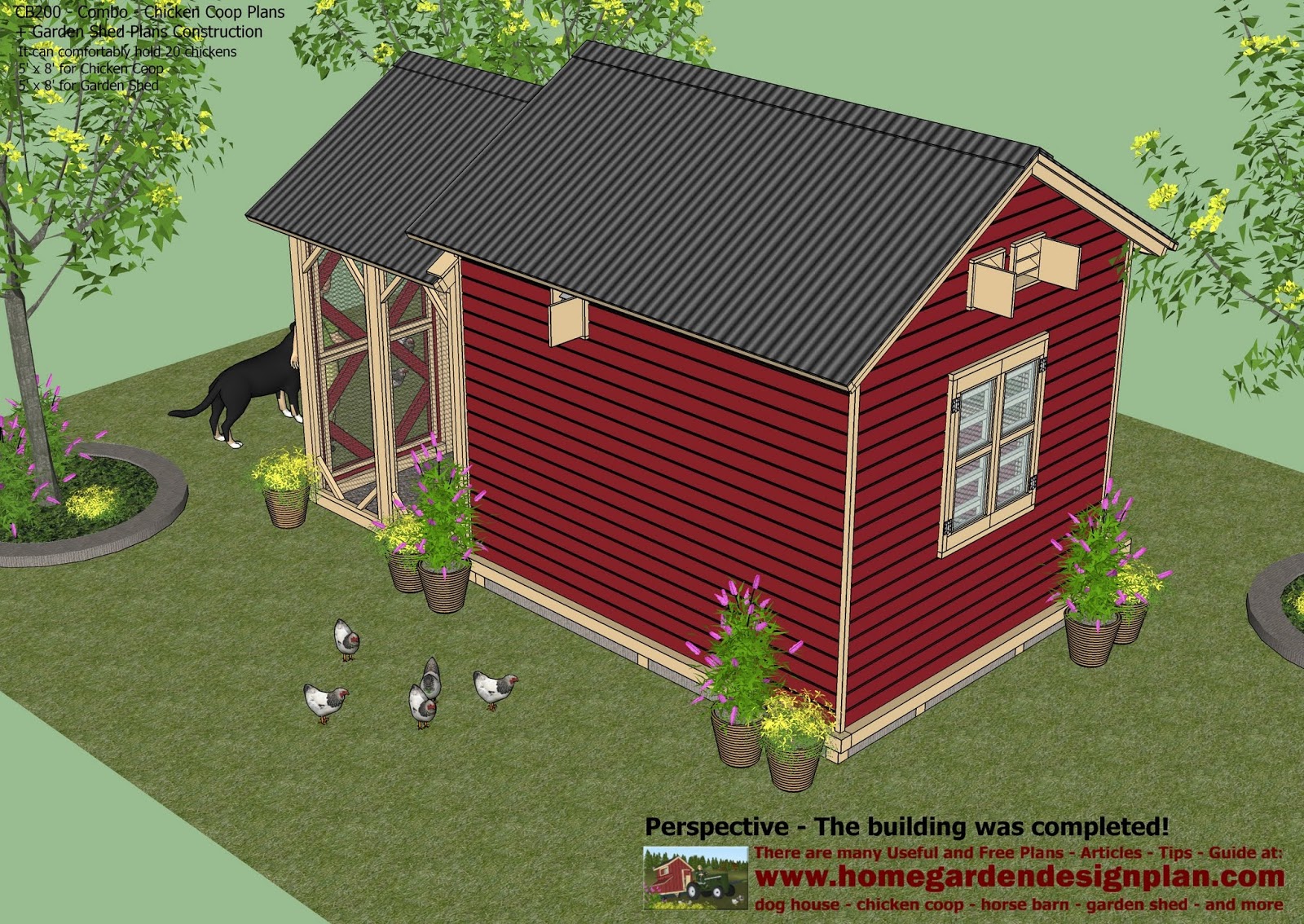

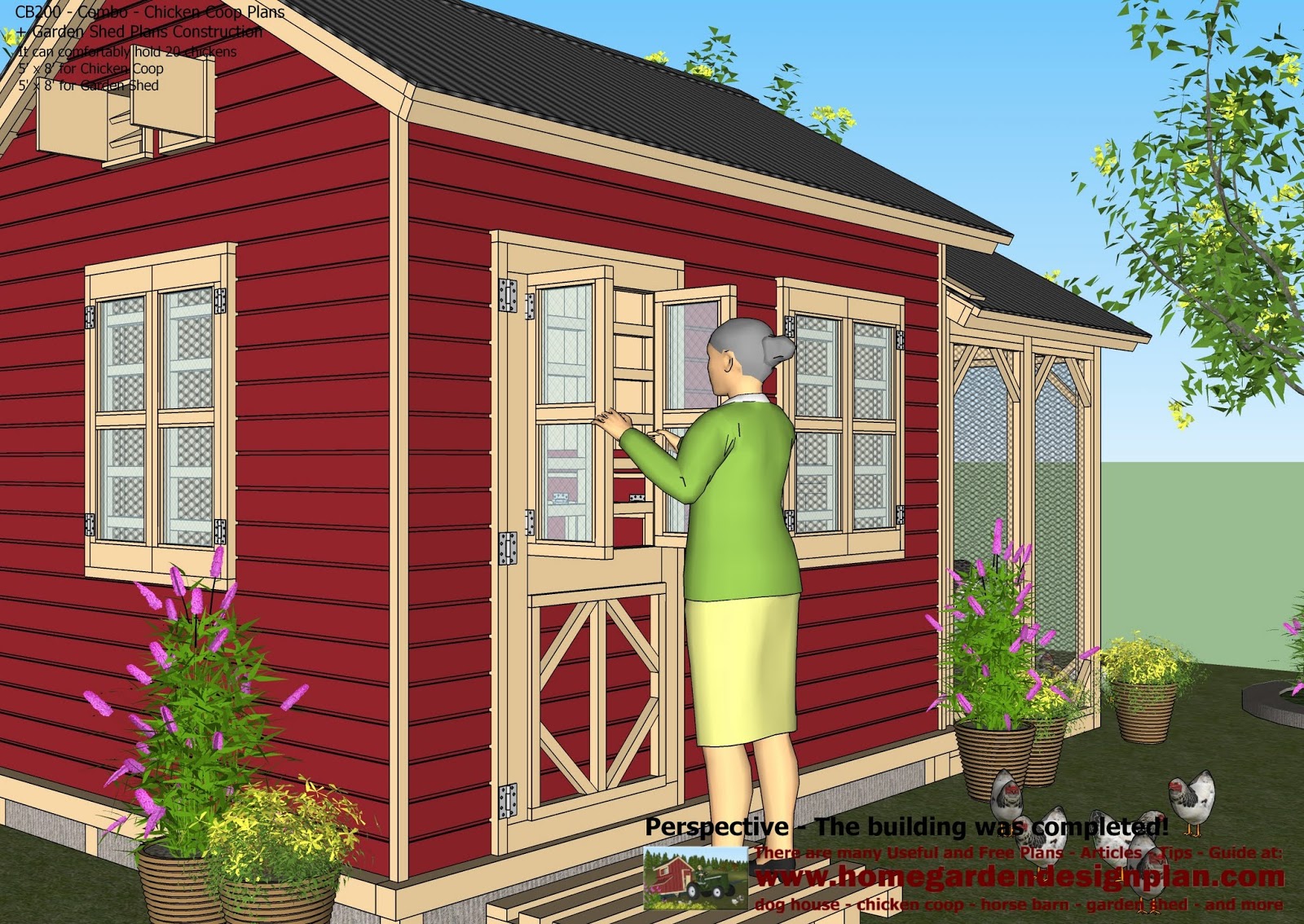

16.0 - Perspective - The building was completed
...

CB200 - Combo Plans - Chicken Coop Plans Construction

Garden Sheds - Storage Sheds Plans Construction

...

See more Concept Plans

...

Detailed Plans for Construction

(PDF file; Excel file

Units: Inches - fractions

Units: Millimeters - decimal

More than 200 drawings in this document

- printed on A4 or A3 size paper)

18.6$

(Buy Safely with www.paypal.com)

See the instructions to buy products at:

Payment Instructions and Guarantee

...

Link to download certainly appears at Step 4: When you complete the payment.

Please click "return to frankvanhnguyen@gmail.com" to go to the product download page

...

In each link:

1. The detailed drawings for construction in the file:

- Name - Detailed Plans for Construction.pdf - (pdf file formate)

2. Materials list in the files:

- Name - The statistics table for woodworking - Excel file.rar - (excel file formate)

- Name - The statistics table for woodworking.pdf - (pdf file formate)

...

Whether you download the product on my automatic system payment?

I will send you a download link by email as soon as I see you have paid!

I want a way to make sure that you will download the product!

...

Thank you for holding this design!
When completed your work. Please send photos to us.
We will give you gifts to express gratitude
Please frequently visit our Blog for seeing new design and get the design useful and free
Step by step instructions for specific, detailed, easy to understand, easy to build.
This is a perfect guidance of an architect has over 10 years experience designing.
Ive worked hard to get this design. I did it after hours, evenings, weekends.
I made ??it some weeks. So I loved it. I am very grateful to you if you love it.
I am very happy if it is useful to you.
I am very grateful to you if you comment on it so I completed it, so I better do the design in the future, for you ...
And I was very happy and thankful when youre holding this design, tracking my work and are reading these lines!
Wish you all the BEST! :)

...

Thank you very much!
